    Re: Gustav sechs

    I can explain it now. The gasket is not needed for the aircraft to be airworthy and therefore it may have been omitted in some cases. I can see it being very useful in keeping dust out of the moving parts of the prop...especially under sandy desert conditions. At very high RPM's these parts would wear out VERY rapidly if not protected in some way. The drawing you see is not mine but an original done by the people at the Messerschmitt plant in Germany and is dated 9 JUN 1944.
    Last edited by Otterkins2; 25th October 2010 at 00:25.
    Reply With Quote Reply With Quote
  2. 27th October 2010, 13:00 #22
    helischmidt's Avatar
    helischmidt
    helischmidt is offline Senior Member
    Join Date
    Sep 2010
    Location
    Mannheim, Germany
    Posts
    226
    Downloads
    0
    Uploads
    0

    Re: Gustav sechs

    Hi friends,

    to the oil tank of the Bf 109 G.
    Here's a photo of Falcons site...

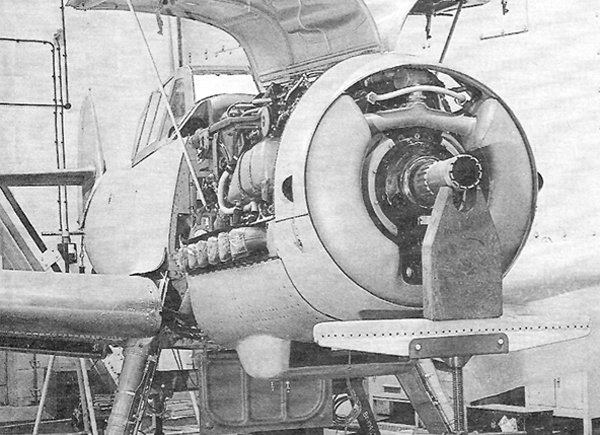

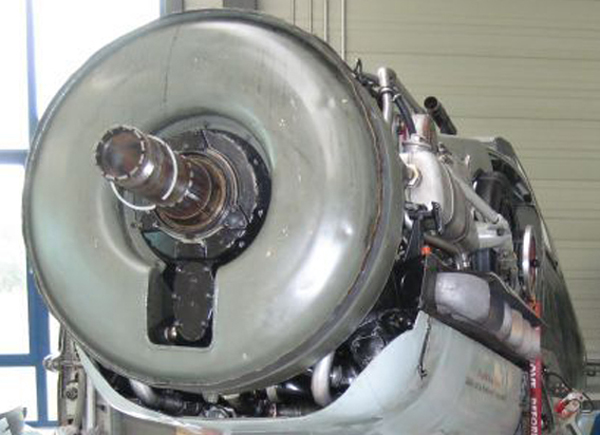

    and these photos of the "Back 6" and the "EADS G-10".

    Greetings!
    Heli

    flyingArt
